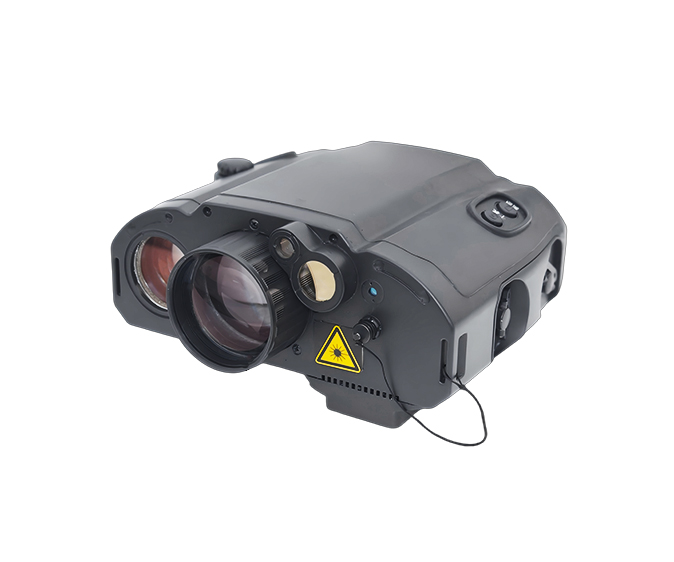

Optical Threat Detection & Countermeasure System
PRODUCT DESCRIPTION
The Optical Threat Detection & Rangefinding System is a multifunction electro-optical observation platform designed for medium- and long-range target detection, observation and ranging. It can detect optical devices such as daylight and low-light sights, binoculars and laser rangefinders, while supporting day/night monitoring, target orientation and laser distance measurement. The compact system can be operated handheld or mounted on a support for flexible field observation.
MAIN FEATURES
The system integrates day/night electro-optical observation, optical-device detection, target orientation and laser rangefinding in a compact platform. It can search for and detect optical sights, binoculars and rangefinding devices, determine target direction and distance, and provide medium- to long-range observation under both daytime and nighttime conditions. Handheld and tripod-mounted operation provide flexible deployment, while the integrated detection and ranging functions simplify target confirmation and monitoring.
PRODUCT PARAMETERS
Detection probability
≥90%
Detection field of view
3.3°
Directional accuracy
≤0.5°
Power density
0.5mW/cm²~1.25mW/cm²
Effective working distance
50m~1500m
Interference spot diameter
50cm±2cm
Range
45m~2000m
Accuracy
±2m
Accuracy
≥95%
Repetition rate
0.5Hz
DETAILS INTRODUCTION
Key Technical Indicators
(1) Observational Ability:
Market Observation (Horizontal × Vertical): 7.2° × 5.4°
(2) Detection capability (optical sight alignment):
Detection probability: ≥90%
Detection field of view: 3.3°
Directional accuracy: ≤0.5°
(3) Laser jamming system (with automatic and manual jamming modes)
Power density: 0.5mW/cm²~1.25mW/cm²
Effective working distance: 50m~1500m
Interference spot diameter: 50cm±2cm
(4) Laser ranging performance
Range: 45m~2000m
Accuracy: ±2m
Accuracy: ≥95%
Repetition rate: 0.5Hz
