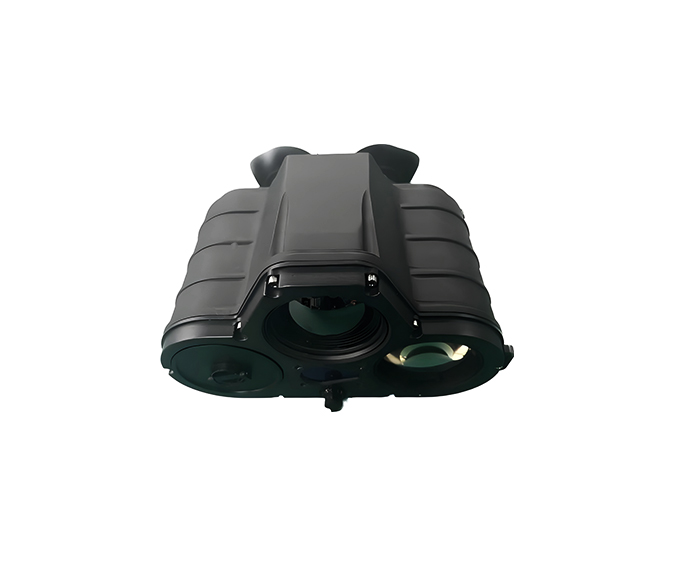

Low-Light & Thermal Fusion Binoculars with Laser Rangefinder
PRODUCT DESCRIPTION
The Low-Light & Thermal Fusion Binoculars integrate low-light and infrared imaging with image fusion, laser rangefinding and digital observation functions in a portable binocular platform. The system supports low-light, infrared, black-and-white fusion and color fusion modes, together with continuous electronic zoom, target orientation, image/video recording and handheld or tripod-mounted operation for flexible day/night observation.
MAIN FEATURES
The binoculars combine low-light and infrared imaging with four selectable display modes: low-light, infrared, black-and-white fusion and color fusion. They support laser rangefinding in all imaging modes, automatic continuous ranging, external-trigger ranging, target bearing and distance memory, and 1.0–4.0× continuous electronic zoom. Real-time information such as azimuth, range and battery status can be displayed on screen, while integrated image and video recording, playback, search and storage functions provide a complete observation and documentation platform for day/night use.
PRODUCT PARAMETERS
Field of View
≥16° × 12°
Eyepiece Diopter Adjustment Range
-4 diopters to +4 diopters
Binocular Image Tilt
≤30°
Magnetic Azimuth Measurement Accuracy
≤0.5° (RMS, main unit tilt range -15° to +15°)
Weight
Main unit (including battery and eyecup) ≤1.3kg
Continuous Operating Time
≥6 hours (at room temperature)
DETAILS INTRODUCTION
Main functions of the product
(1) Binocular display observation, can be used handheld or mounted on a stand;
(2) It has power control (on/off), mode switching (four modes: low light, infrared, fusion black and white, fusion color), contrast adjustment (four modes: low light, infrared, fusion black and white, fusion color), brightness adjustment (four modes: low light, infrared, fusion black and white, fusion color), image polarity conversion (infrared mode), and image and video storage, playback, retrieval (file name retrieval) and deletion control functions. Among them, the storage capacity of AVI format video is ≥6 hours, the storage capacity of BMP format image is ≥10,000 original images, the video frame rate is ≥24Hz, and a continuous video file must be recorded and stored as one file (image display operations can be performed during recording, including mode switching, contrast adjustment, brightness adjustment, and image polarity conversion operations);
(3) It has the function of measuring the distance between multiple targets, and the error should not exceed ±2 meters;
(4) It has the function of memorizing the target direction, distance and time;
(5) The imaging system (four modes: low light, infrared, fused black and white, and fused color) has a continuous electronic zoom function of 1.0 to 4.0, and the zoom step is not greater than 0.1;
(6) It has an eyepiece anti-light leakage function, and the exposure distance is not greater than 10 meters.
(7) With undervoltage indication and reverse battery protection functions;
(8) The image is stable, smooth, clear, without tailing, ghosting, flickering, or residual images;
(9) With cursor display and blanking functions;
(10) The image display includes real-time information such as azimuth, distance measurement results, and battery level;
(11) With unexpected power failure information and status backup functions;
(12) With self-test function;
(13) Distance measurement can be performed in four modes: low light, infrared, fused black and white, and fused color;
(14) With external trigger distance measurement function;
(15) With automatic continuous distance measurement function
