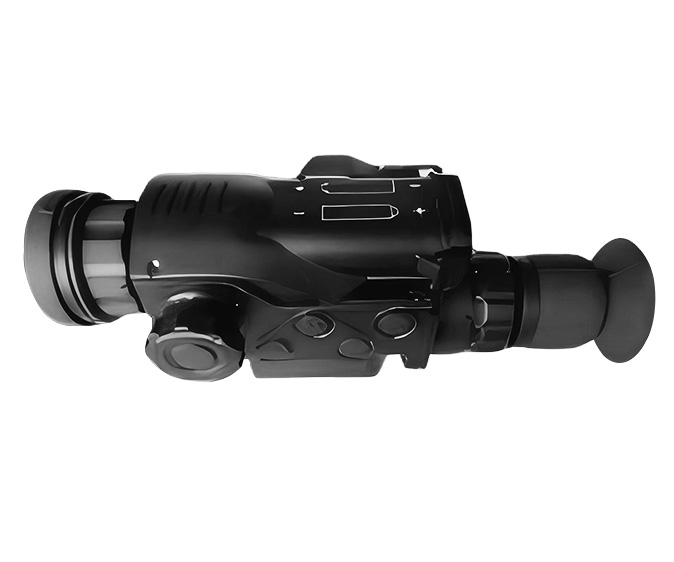

12 μm Lightweight Thermal Imaging Sight

PRODUCT DESCRIPTION

The Lightweight Uncooled Thermal Imaging Sight uses a 384×288 uncooled infrared detector with 12 μm pixel pitch and 8–14 μm spectral response for thermal observation in low-light and nighttime environments. It combines a 64 mm F/1 optical system, 800×600 OLED display, electronic image adjustment and compact ≤1 kg construction for integrated thermal imaging applications.

MAIN FEATURES

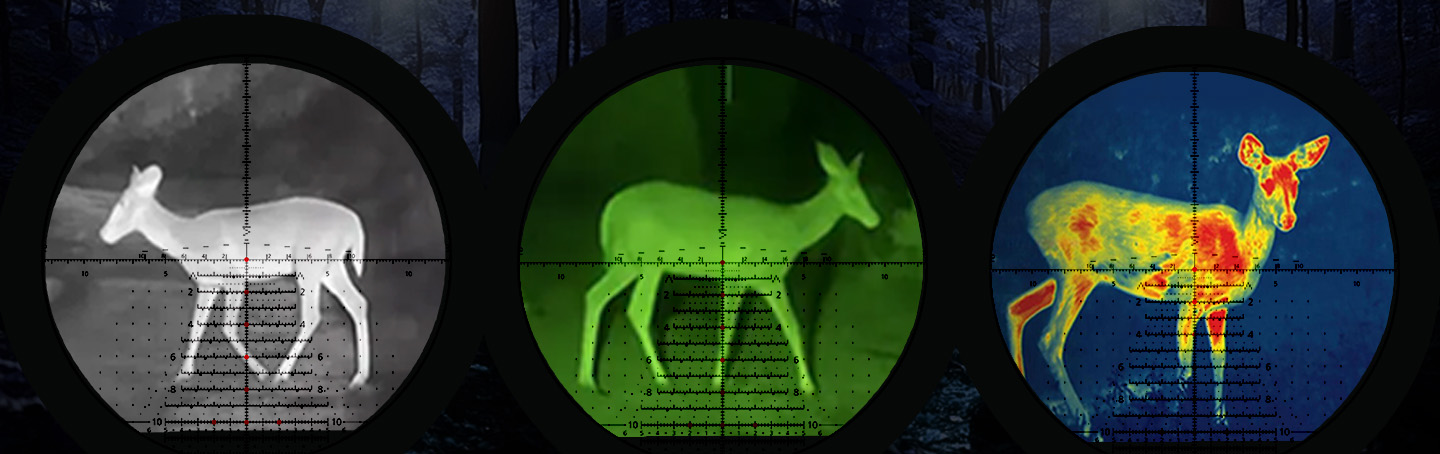

The system integrates 384×288 uncooled thermal imaging with a 12 μm detector and high-sensitivity NETD ≤40 mK for clear infrared observation. Its 64 mm F/1 optics provide a nominal 4°×3° field of view and focusing from 10 m to infinity. The device supports automatic calibration, electronic image magnification, image polarity switching, video gain and brightness adjustment, while the 800×600 OLED display, video output and RS232 interface support image viewing and system integration.

PRODUCT PARAMETERS

Product Name

Weight

≤ 1kg

Operating Temperature

-40°C to +60°C

Storage Temperature

-45°C to +70°C

DETAILS INTRODUCTION

The scope is composed of an objective lens, an infrared detector, a readout circuit, a signal processing circuit, buttons, a display screen, a scope body, and a scope gun connection base according to their functions.

1. Main tactical and technical indicators

1.1 Weight: ≤ 1kg..

1.2 Operating distance:

Under standard atmospheric visibility (visibility>20km), at room temperature

Under environmental conditions where the relative humidity is ≤ 80% and the temperature difference between the target and background is ≥ 10 ℃:

For individual sports targets: recognition distance ≥ 800m

For moving vehicle targets: recognition distance ≥ 1500m;

1.3 Infrared detector

a) Type: Uncooled infrared detector;

b) Resolution: 384 × 288

c) Wavelength range: 8-14 μ m.

D) Pixel size: 12 μ m

E）NETD:≤40mk

1.4 Objective lens

a) Diameter: 64mm;

b) Focal length: f=64mm, F=1;

c) Focusing range: 10m~∞;

a) Field of view: 4 °× 3 ° (nominal value).

1.5 Display and Eyepiece

a) Display: OLED binocular display;

b) Display resolution: 800 × 600;

c) Eyepiece exit pupil distance:>35mm.

1.6 External interfaces

a) Video output: CCIR/PAL;

b) Communication interface: RS232 serial port.

1.7 Power Supply

a) Battery: 8 hours of usage time;

b) External power supply: Supports external connection.

1.8 Operation Control Function

a) Power switch: The battery, power off, and external power can be switched by manually turning it on and off

Change;

b) Automatic calibration: The product automatically enters calibration after startup;

c) Optical focal length adjustment: electric optical focusing;

d) Image electronic enlargement: After automatic correction, the image can be electronically enlarged;

e) Image polarity conversion: After automatic correction, image polarity conversion processing can be performed;

f) Video gain adjustment: After automatic correction, video gain adjustment can be performed;

g) Brightness adjustment: After automatic calibration, brightness adjustment can be performed.

h) Aiming trajectory segmentation and stacking can be performed based on the actual shooting table

1.9. Environmental adaptability performance

a) Working temperature: -40 ℃ to+60 ℃;

b) Storage temperature: -45 ℃ to+70 ℃;
