PRODUCT DESCRIPTION

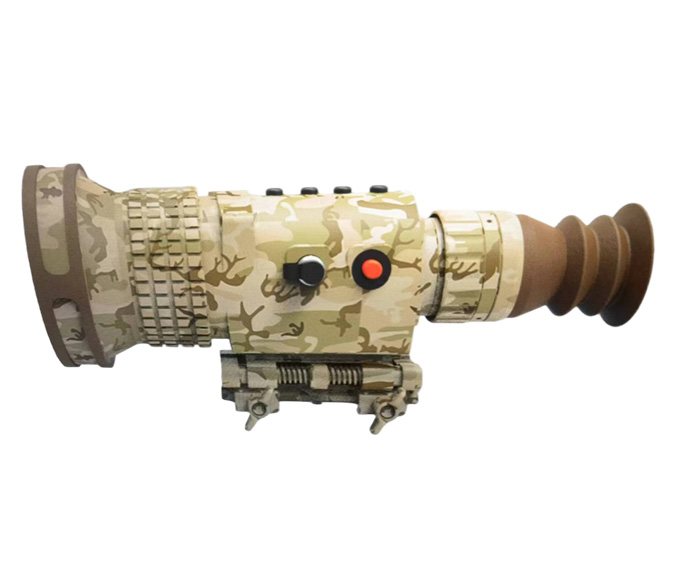

The RB90G/RB120G Uncooled Thermal Imaging Sight is designed for thermal observation in darkness, fog, smoke and other low-visibility environments. It uses an uncooled FPA microbolometer with 384×288 resolution and optional 640×480 imaging, combined with 90 mm or 120 mm optics, 4× electronic zoom and an integrated OLED viewfinder. White-hot and black-hot display modes, manual focusing and rugged environmental performance support reliable thermal observation under demanding conditions.

MAIN FEATURES

The system combines uncooled 8–14 μm thermal imaging with 90 mm or 120 mm long-focus optics for target observation in darkness and reduced-visibility environments. It supports 4× electronic zoom, manual focusing, automatic or manual offset and gain control, 50 Hz non-uniformity calibration and selectable white-hot/black-hot image polarity. An integrated OLED viewfinder provides direct image display, while programmable reticle profiles, composite video output and rugged wide-temperature operation support flexible thermal observation and system integration.
