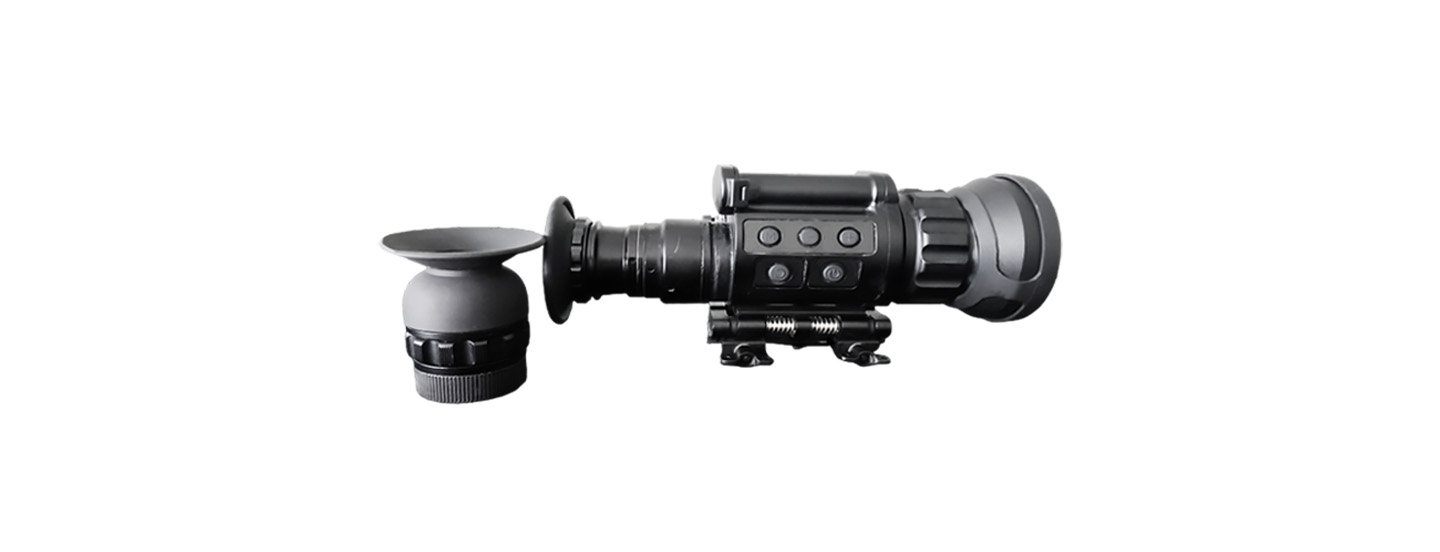

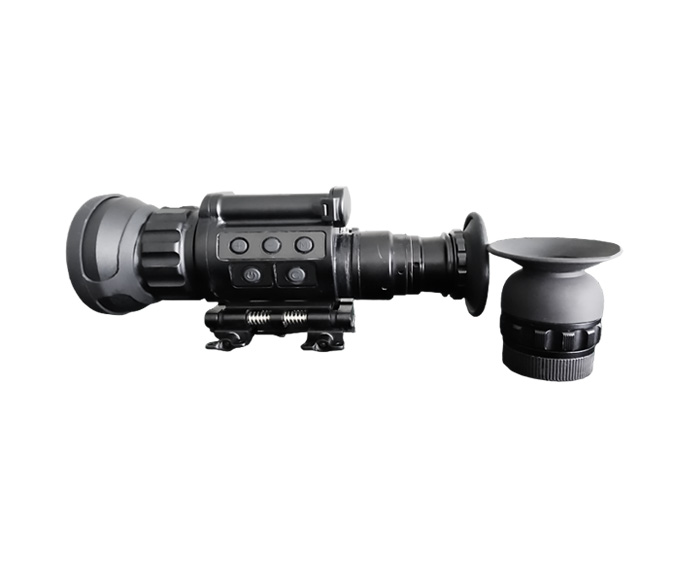

Construction and Working Principle The product mainly consists of an objective lens group, a base group, an eyepiece lens group, an eye mask group, and a lens gun connection seat. The base group, as the core component, consists of a base, a detector group, and a battery component.

Product composition and functions

1.Objective lens group

The objective lens group adopts a linear moving focal length adjustment method, and rotates the focus handwheel to achieve a clear image from 20m to infinity, with good ergonomic efficiency.

2. Base body group

The base group is equipped with a focal plane assembly and a power supply group, and the two ends are connected to the objective lens group and the eyepiece group respectively. The base body group is the connection center of the system. The integrated design effectively enhances the connection strength of the mirror gun, reduces the sealing link, and improves the reliability of the entire machine.

Manually operate the button module on the substrate to perform power switch, uniform correction, thermal polarity conversion, 2x image amplification and mode conversion on the product.

3. Eyepiece group

The eyepiece group consists of an OLED fixing group, an optical axis adjustment mechanism and an eyepiece imaging system. The optical axis adjustment mechanism consists of an eyepiece connecting base, a locking pressing ring and an adjustment nail to correct the offset between the OLED display center and the optical axis center of the eyepiece imaging system.

The main function of the eyepiece group is to convert the images on the OLED display for human eyes to observe.

4. Eye mask set

When using the gun, the eye mask set presses tightly on the front end of the white light scope to ensure that there is no light leakage at the junction and provide effective protection for the user.

5.Mirror gun connection seat

The mirror gun connection seat is a Picatinny quick clamping mechanism, which is connected to the gun through a press plate and locked with a nut. Reliable connection and fast loading and unloading.

Work principle

The objective lens converges the target infrared light waves onto each sensitive element located in the infrared detector. The infrared detector samples the corresponding timing drive of the readout circuit to form a continuous analog signal. The signal is amplified by image enhancement and control circuit, A/D conversion, non-uniformity compensation, and image enhancement, and forms a standard video signal and is sent to an OLED display. The display image is enlarged by the eyepiece and observed and aimed at the target.

Main performance and technical parameters

1. Main tactical technical indicators

Weight: ≤ 1.35kg.

2. Effect distance:

at standard atmospheric visibility (visibility > 20km), at room temperature

Under environmental conditions with relative humidity ≤80%, and the temperature difference between target and background is ≥10℃:

For sports individual targets: identification distance ≥1000m;

For moving vehicle targets: identification distance ≥1800m;

3.Infrared Detector

Type: Uncooled infrared detector;

Resolution: 1280 × 1024

Wavelength range: 8–14 μm

Pixel size: 12 μm

NETD: ≤ 40 μm

4.Objective Lens

Diameter: 85mm;

Focal Length: f=85mm, F=1;

Focusing Range: 50m to ∞;

Field of View: 10° × 7.5° (nominal)

5.Display and Eyepiece

Display: OLED binocular display;

Display resolution: ≥1280×1024;

Eyepiece exit pupil distance: >45mm.

6.External Interfaces

Video Output: CCIR/PAL

Communication Interface: RS232 serial port

7.Power Source

Battery: 8 hours of use;

External Power Supply: Supports external power supply.

8.Operational Controls

Power Switch: Manually switches between battery, off, and external power.

Auto Calibration: Automatically enters calibration upon power on.

Optical Focus Adjustment: Motorized optical focus adjustment.

Electronic Image Magnification: Electronically magnifies the image after auto calibration.

Image Polarity Conversion: Polarity conversion after auto calibration.

Video Gain Adjustment: Video gain adjustment after auto calibration.

Brightness Adjustment: Brightness adjustment after auto calibration.

Targeting trajectory overlay based on actual firing chart.

9. Environmental Adaptability

a) Operating Temperature: -40°C to +60°C;

b) Storage Temperature: -45°C to +70°C;
