Product Usage and Functionality

This individual night vision and night combat system, with a low-light-level night vision device as its core and supplemented by a tactical helmet, infrared tactical flashlight, infrared laser designator, infrared identification patch, and infrared identification light, can enhance nighttime combat effectiveness when used scientifically and rationally. It can be used for special reconnaissance, raids, ambushes, counter-terrorism, intelligence gathering, and prisoner capture missions.

Functions:

Adjustable objective lens focal length and interchangeable eyepiece lenses with different diopter powers meet the needs of close-range observation and the clear viewing requirements of observers with different vision levels.

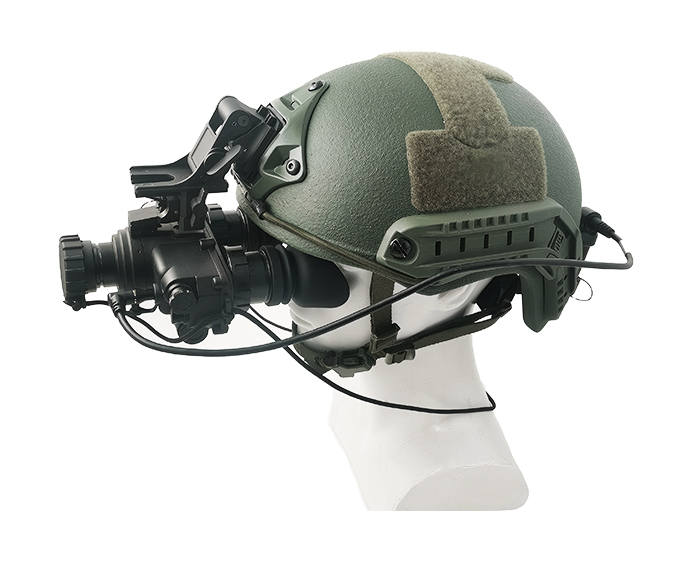

When connected to a helmet, the night vision device features forward and backward adjustment, bend, and tilt adjustment.

Interpupillary distance adjustment is also available.

1. Key Technologies

1) High-performance image intensifier tube;

2) Field of view stitching technology;

3) Combined image adjustment technology;

4) Lightweight design;

5) Perfect fit for helmets and gas masks.

2. Key Technical Specifications

1) Field of view: 97° × 40°;

2) Magnification: 1× ± 0.05×;

3) Weight: ≤ 760g;

4) Exit pupil diameter: Φ14mm;

5) Eyepiece exit pupil distance: 25mm;

6) Power supply: Uses a battery pack;

7) Operating voltage: 2.2-3.4V;

8) Operating distance: Active person identification distance ≥ 120 meters (atmospheric visibility 10 km, clear starlight (1×10⁻³ lx～3×10⁻³ lx), 50% target-background contrast).

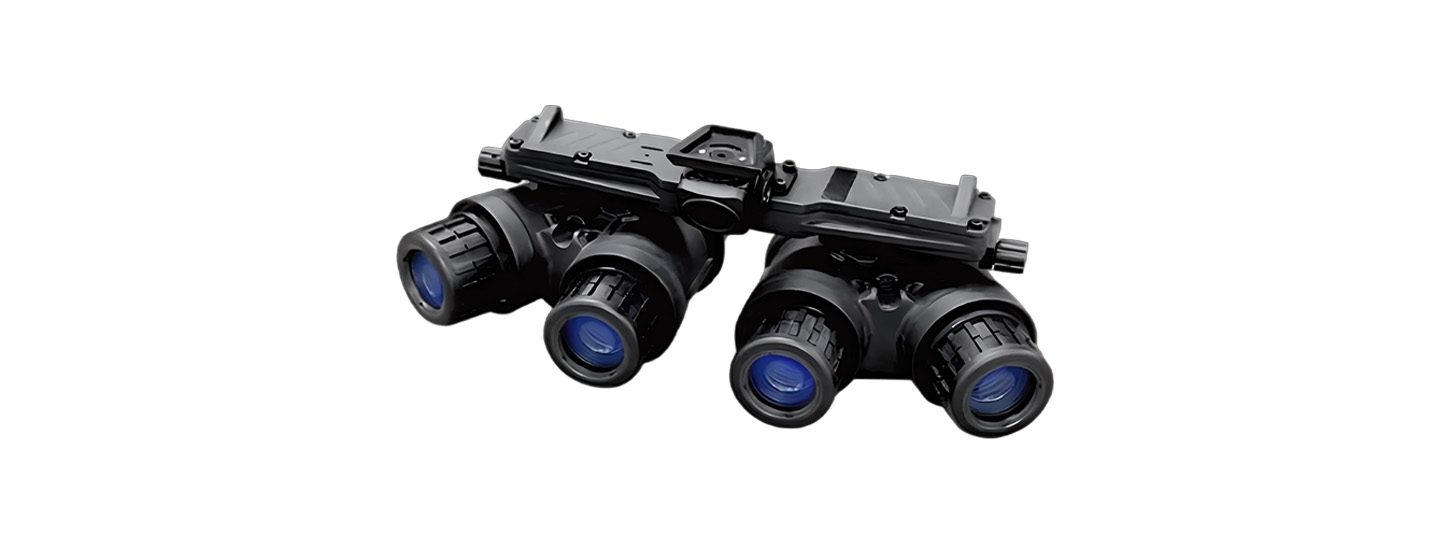

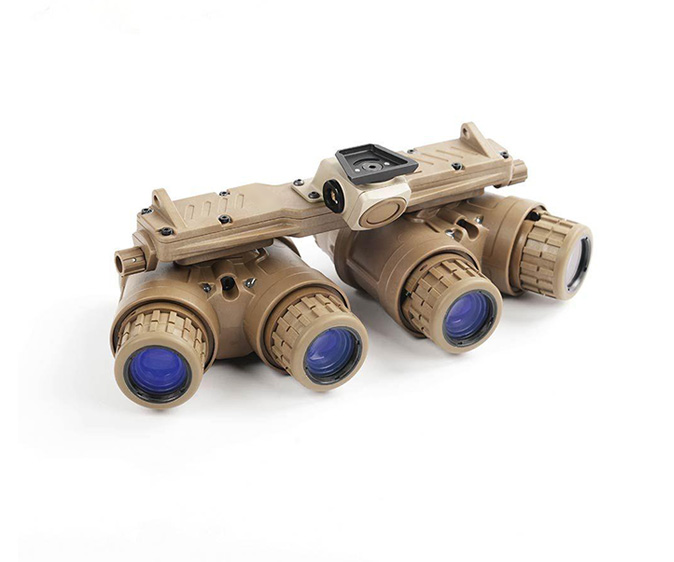

The night vision goggle provides a field-of-view approaching the capabilities of the human eye to enhance situational awareness in low-light conditions. With four tubes instead of two, soldiers can quickly perceive their entire operational surroundings without moving their heads, enabling them to react more quickly to potential threats in their peripheral field of vision.The Ground Panoramic Night Vision Goggle provides the operator with a 97-degree panoramic field-of-view that enables increased situational awareness and operational effectiveness.

We the best combination of performance, ergonomic design and volume currently available on the international market. wider than the soldier's helmet. As well as the conventional helmet flip-up feature, each of the outer tubes can be raised independently, powering off automatically to guarantee discretion. Designed for optimum energy efficiency, this revolutionary new product is battery operated, with an available external battery pack for longer periods of operation.

The night observation device is fully compatible with night sights such as the weapon sight. It is a compact, robust unit designed to accommodate future technologies and functionalities, and includes an optimised maintenance plan to maximise operational availability.

Our innovative capabilities in the design and development of night vision goggles and nighttime observation solutions are designed to meet the comprehensive needs of Army personnel. Our products are specifically designed for the military, international special operations forces, and professional groups.

Harris Ground Panoramic Night Vision Goggle provides the operator with a 97-degree panoramic field-of-view that enables increased situational awareness and operational effectiveness.

Provides the operator maximum visual information for accurate assessment and acquisition

The 97 degree panoramic field-of-view provides increased situational awareness during periods of reduced light and night time operations.

Individual monoculars can be detached from the system and powered with the included power adapter to provide a low-profile handheld night vision goggle.

Available with ANVIS or BNVIS mount for use with multiple helmet and mount configurations.

Modular design for maintenance and supportability including solder-free replaceable tube design and fully maintainable bridge design.

Optional cold-weather battery pack, with selectable infrared beacon, provides better performance in cold temperatures.
