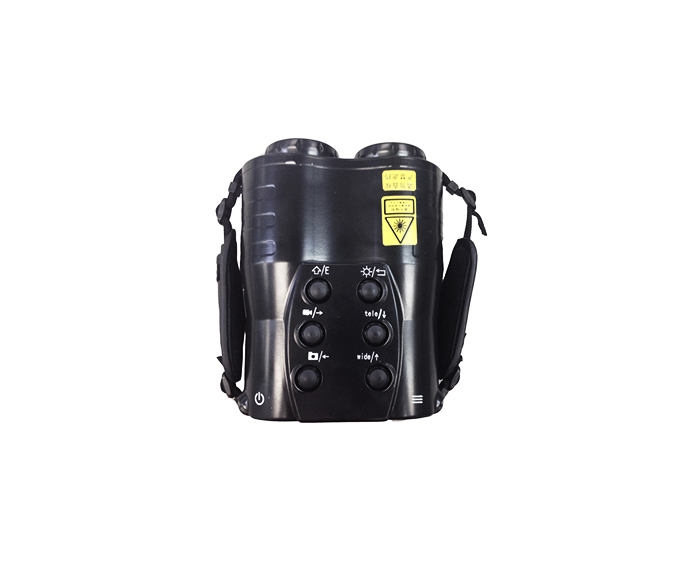

5KM Handheld Laser Rangefinder with Day/Night Observation
PRODUCT DESCRIPTION
The 5KM Handheld Laser Rangefinder combines long-range laser measurement with a 1920×1080 low-light camera, 7× optical magnification, electronic compass and target positioning functions. It supports single and continuous ranging, image and video recording, digital zoom and wireless data transmission, providing an integrated handheld platform for day/night observation, ranging and target information collection.
MAIN FEATURES
The handheld laser rangefinder integrates 1920×1080 low-light imaging, 5 km laser ranging, 7× optical magnification, electronic zoom, electronic compass and target positioning in one portable system. It supports single and continuous ranging, multi-target relative distance measurement, target direction and distance memory, as well as image and video recording and playback. Integrated Wi-Fi, multiple external interfaces, long battery life and IP67 protection provide flexible operation for day/night observation and long-range measurement in demanding outdoor environments.
PRODUCT PARAMETERS
Image and Video Storage
JPEG and MP4 file storage
Playback
Supports local image and video playback and can be exported to a computer for viewing
Memory Card
Built-in 32 EMMC memory
Light Leakage Protection
Supported
Interfaces
PAL, USB, RS232, and DC12V
Tripod Mount
Standard, 1/4-inch
Wireless Transmission
Wi-Fi
Battery
4 x 18650 rechargeable lithium batteries
Continuous Operating Time
≥12 hours
Operating Temperature
-20°C to +50°C
Storage Temperature
-45°C to +60°C
Ingress Protection
IP67
Weight
≤1.2kg
Dimensions
≤153mm*150mm*68mm
DETAILS INTRODUCTION
Product Main Functions
1) Can be used handheld or mounted on a stand.
2) Features day and night observation, target ranging, and orientation.
3) Features power control, contrast and brightness adjustment, focus adjustment, self-test, image and video storage (storage format: H.264 compression), playback, retrieval (file name retrieval), and deletion. Audio and video are synchronized. The device can store ≥6 hours of AVI format video and 10,000 BMP photos (video and original images, with a frame rate ≥25-1Hz; one continuous video file is recorded and stored as a single file).
4) Information overlaid on the video image includes time, direction, distance, and the number of laser shots fired.
5) Features automatic continuous ranging.
6) Features low-voltage warning and reverse battery protection.
7) The imaging system features continuous electronic zoom from 1.0 to 4.0, with a zoom step of 0.1. 8) Calculates the distance between multiple targets
9) Externally triggered ranging function
10) Memory of target position, distance, and time
11) Electronic document help function
12) Accumulated laser firing count with an accuracy of ±2 times.
