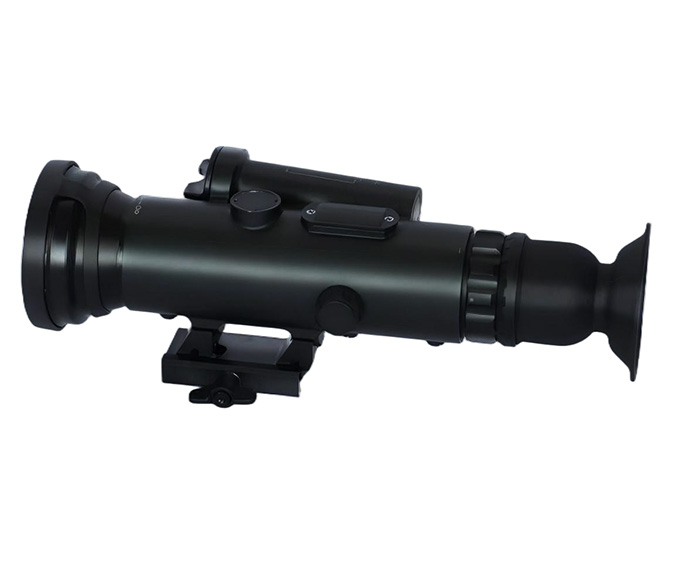

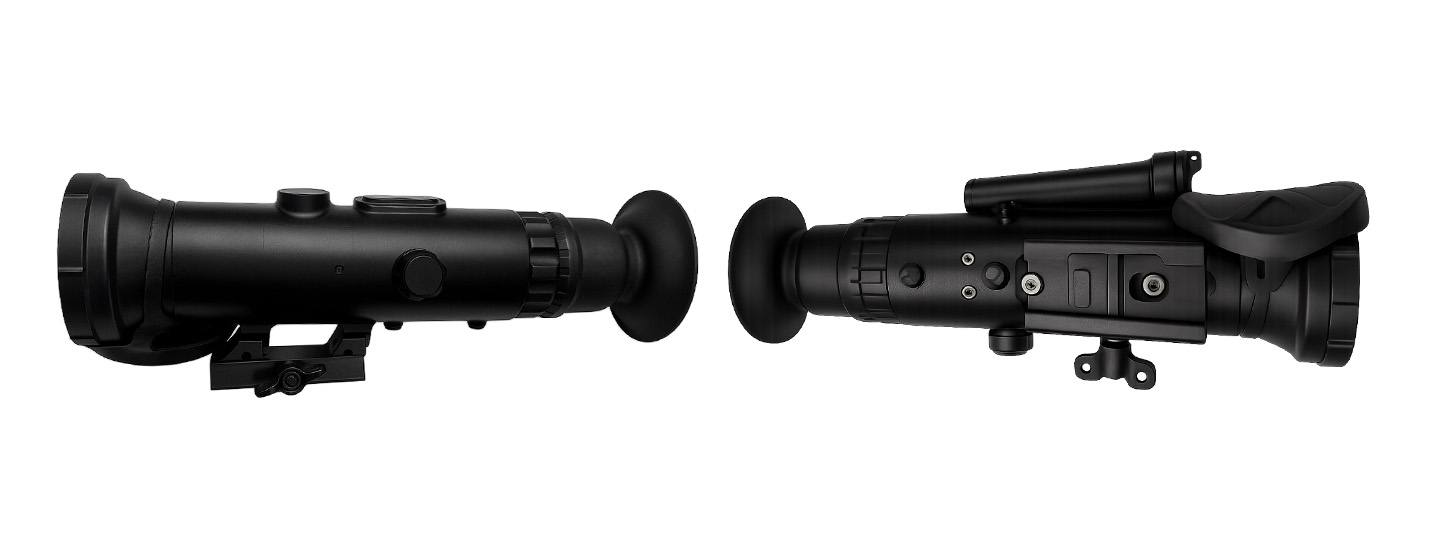

Digital Day/Night Sight
PRODUCT DESCRIPTION
The Jinzhuo digital scope is mainly used for observing and aiming single living targets within 300m at night, collecting and transmitting day and night images, and integrating functions such as setting weapon firing angles. It can be used as a night sight and also as an observation and command mirror for night observation. Meet the requirements for day and night use. It has the characteristics of small size, light weight, high aiming accuracy, good reliability, and easy portability.
MAIN FEATURES
Mainly used for military, border special police and other weapon systems, for light weapon shooters to shoot, aim and observe.
PRODUCT PARAMETERS
Recognition Distance
Under the conditions of visibility 8km, opaque background, and illumination (1~3)x10-3lx, the target distance for a single upright person is ≥300m
Minimum Equivalent Magnification
≥3×
Field of View
≥8° (horizontal) × 6° (vertical)
Eye Point Distance
≥30mm
Clear Imaging Range
10m～∞
Visual Adjustment range
-5SD～+2SD
Zoning Adjustment range (height and Direction)
≥±20mil
Zoning Adjustment Accuracy
≤0.25mil
Zero Travel amount (including repeat loading Accuracy)
≤0.5mil
Main Unit Weight
≤ 0.9kg (including battery, eyecup, objective lens cover)
MTBF
≥1000h (θ1)
Operating Temperature
-40℃～+55℃
Wi-Fi Wireless Transmission Distance
≥3m (signal transmission strength at 12 meters is lower than -79dBm)
Wi-Fi Wireless Transmission Delay
≤120ms (transmission frame rate ≥25-1Hz, image resolution not less than 800x600)
DETAILS INTRODUCTION
- It can meet day and night use requirements and operates normally at a 15° angle to the sun (during the day) or vehicle headlights (at night).
- It can be used while wearing an FNM09A military gas mask when equipped with a firearm.
- It has brightness and contrast adjustment functions.
- It has Wi-Fi wireless video transmission (transmission frequency band 2.4±0.1GHz), capable of wirelessly transmitting video signals to a display terminal. The host has a Wi-Fi on/off function, and both the host and display terminal can display Wi-Fi on/off status and signal connection status. The display terminal can also display the transmitted image. The display terminal can select the connected product by setting an 8-digit password (user-configurable).
- It has light leakage prevention function.
- It has image acquisition and transmission functions.
- It has automatic exposure and automatic gain switching functions.
