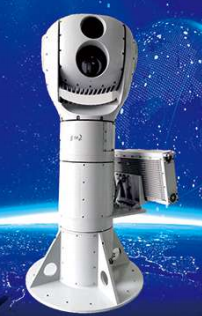

Radar-Guided EO/IR Multi-Sensor Surveillance System

Radar Detection · EO/IR Identification · Sensor Fusion · Automatic Tracking

Product usage

The system integrates radar detection technology and photoelectric detection technology, and has functions such asday and night radar scanning, video surveillance funetion, electronic map funetion, zone and alarm setting function.radar photoelectric linkage detection function, target tracking function,optoelectronic system field-of-view angleand servo speed self-adaptation, etc., which can realize the early warning ofvarious types oftargets in the monitoringarea and confirm the tracking. and to meet the different needs ofland, coastal monitoring and defence ofkey areas.

Application scenarios

The integrated radar-EO detection system is designed for land border surveillance, coastal and port security, key-area defense, low-altitude UAV monitoring, and perimeter protection of large facilities and critical infrastructure. By combining radar and electro-optical detection, the system supports continuous day/night scanning, video surveillance, electronic mapping, zone and alarm settings, radar-EO linkage, target tracking, and automatic adaptation of field of view and servo speed. It enables long-range detection, early warning, EO verification, and continuous tracking of personnel, vehicles, UAVs, and other targets. The system is especially suitable for all-weather, automated, multi-target surveillance over large areas. It also supports layered detection and identification of different target types through radar detection and EO recognition.

Performance Indicator

Charactensic

Value

EO Target Identification Range: Visible Light / Personnel / Vehicle / UAV

Resolution: 2560×1440 / Personnel (0.5 m × 1.75 m): ≥9 km / Vehicle (4 m × 2 m × 1.5 m): ≥10 km / UAV (wheelbase 0.35 m): ≥3 km

Uncooled Thermal Imager (Resolution: 640×512): Personnel / Vehicle / UAV

≥1.5 km / ≥3 km / ≥1 km

Azimuth monitoring range

n*360°

Pitch monitoring range

-45°-+45℃

Maximum rotating speed

≥90°/s

Radar azimuth accuracy

< 0.05°

Radar pitch accuracy

< 0.5°

Operating distance for personnel/for vehiele/for UAV

10 km/15km/6km

Number of Tracked Targets

≥200
